Features
- GROHE StarLight — a flawless, robust, long-lasting designed to be extremely resistant to dirt and scratches
- GROHE EcoJoy — reduces water consumption by up to 50 percent
- GROHE AquaGuide — adjustable aerator to direct the angle of the water flow from 20 to 40 degrees
- Solid brass body
- Metal lever handles
- Nylon braided flex hoses
- Includes drain assembly
- Max. Flow Rate: 1.2 gpm - 4.5 L/min
Technical Features
- GROHE StarLight
- GROHE EcoJoy
- GROHE AquaGuide adjustable aerator 20°-40°
- 7 1/4" Faucet height
- 6 1/8" Spout reach
- 3 1/4" Aerator height
- Solid brass body
- Metal lever handles
- Nylon braided flex hoses
- 1.2gpm (WaterSense)
Nominal Dimensions: 7-7/16 in x 19 in x 7-1/4 in (189 mm x 483 mm x 184 mm)
8-inch Widespread 2-Handle S-Size Bathroom Faucet 1.2 GPM
12 lb (5.4 kg)
Chrome (G00)
692
Brushed Nickel (GEN)
901

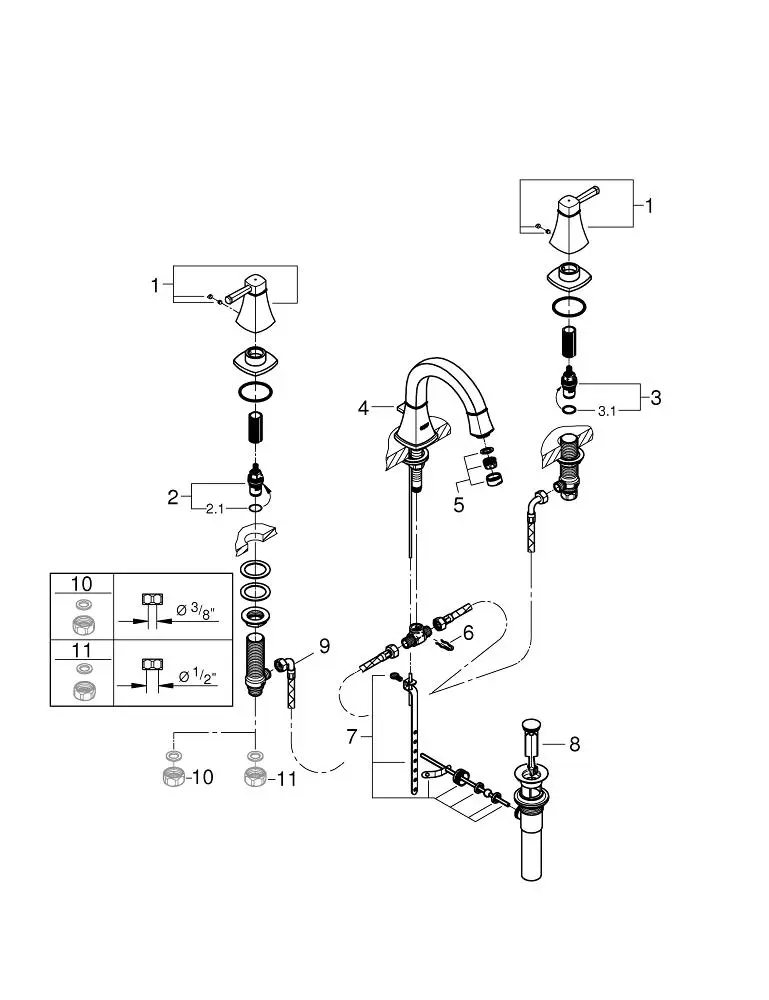

O-Ring (18,2 X 1,7mm)
0 lb (0.0 kg)
Chrome
35
spacer
Coupling Nut (1/2")
0 lb (0.1 kg)
Chrome
37
spacer
Coupling Nut (1/2" X 14.5mm)
0 lb (0.1 kg)
Chrome
27
spacer
Flexible Connection Hose
0 lb (0.1 kg)
Chrome
67
spacer
Ceramic Cartridge, Right
0 lb (0.1 kg)
Chrome
66
spacer
Ceramic Cartridge, Left
0 lb (0.1 kg)
Chrome
66
spacer
Lift Rod
0 lb (0.1 kg)
Chrome
43
spacer
Flow Straightener Adjust
0 lb (0.1 kg)
Chrome
12
spacer
Pair Of Handles Blue/Red
2 lb (0.7 kg)
Chrome
297
spacer
Plug
0 lb (0.1 kg)
Chrome
15
spacer
Actuating Rod
0 lb (0.1 kg)
Chrome
15
spacer
Fixing Clamp
0 lb (0.0 kg)
Chrome
27
8-inch Widespread 2-Handle S-Size Bathroom Faucet 1.2 GPM
12 lb (5.4 kg)
Chrome (G00)
692
Brushed Nickel (GEN)
901
O-Ring (18,2 X 1,7mm)
0 lb (0.0 kg)
Chrome
35
spacer
Coupling Nut (1/2")
0 lb (0.1 kg)
Chrome
37
spacer
Coupling Nut (1/2" X 14.5mm)
0 lb (0.1 kg)
Chrome
27
spacer
Flexible Connection Hose
0 lb (0.1 kg)
Chrome
67
spacer
Ceramic Cartridge, Right
0 lb (0.1 kg)
Chrome
66
spacer
Ceramic Cartridge, Left
0 lb (0.1 kg)
Chrome
66
spacer
Lift Rod
0 lb (0.1 kg)
Chrome
43
spacer
Flow Straightener Adjust
0 lb (0.1 kg)
Chrome
12
spacer
Pair Of Handles Blue/Red
2 lb (0.7 kg)
Chrome
297
spacer
Plug
0 lb (0.1 kg)
Chrome
15
spacer
Actuating Rod
0 lb (0.1 kg)
Chrome
15
spacer
Fixing Clamp
0 lb (0.0 kg)
Chrome
27
Models marked with * are discontinued, but product may still be available while supplies last.
Didn't find the PDF or file you were looking for? Reach out to our team via our
Contact Form.
3D Objects are not currently available for this product
2D CAD File
2D CAD File
