Atrio® New

Single Hole Two-Handle Deck Mount Vessel Sink Faucet 1.2 GPM

The Atrio Faucet Collection is the ultimate fusion of sophisticated design and precision performance you’ve come to expect from GROHE. Engineered to meet the demands of every bathroom Blueprint, Atrio offers extensive style options from wideset to wall mount lavatory faucets, each ensuring years of unequaled beauty and unrivaled satisfaction

Brushed Nickel 21046EN3 DISCONTINUED   Substitution Available (21161EN0)
List Price: $1,313.00
Cal Green CEC Certified Water Efficient WaterSense
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE SilkMove ceramic cartridge
  • Swivel tubular spout with flow control and stop limiter
  • 1/2" (13mm) ceramic cartridge (90° turn)
  • Push-open 1 1/4" (32mm) waste set
  • High spout
  • Stainless steel flex lines
  • Quick installation system
  • Less handles – order (18 026) or (18 027) (sold separately)
  • Flow rate: 1.2 gpm (4.5 l/min)
  • Energy Policy Act of 1992,NSF 61,ASME A112.18.1/CSA B125.1,US Federal and State material regulations
Technical Features
  • GROHE SilkMove
  • GROHE StarLight
  • GROHE EcoJoy
  • 16 9/16" Faucet height
  • 6 9/16" Spout reach
  • 7 1/16" Aerator height
  • Solid brass body
  • Less handles – order (18 026) or (18 027) handles (sold separately)
  • Nylon braided flex hoses
  • CALGreen/CEC compliant,1.2gpm (WaterSense)
Description
Net Weight
SKU
Color
List Price USD
Single Hole Two-Handle Deck Mount Vessel Sink Faucet 1.2 GPM
8 lb (3.7 kg)
21046EN3 *
Brushed Nickel (GEN)
1313
21046003 *
Chrome (G00)
1053
Required Components (Not Included)
Cross Handles (Pair)
1 lb (0.3 kg)
18026EN3 *
Brushed Nickel
158
spacer
Lever Handles (Pair)
1 lb (0.3 kg)
18027EN3 *
Brushed Nickel
158
Substitutions
Atrio Single Hole Two-Handle Vessel Sink Faucet without Handles, 1.2 GPM (4.5 L/min)
5 lb (2.5 kg)
21161EN0
Brushed Nickel
2224
Spare Parts
O-Ring (13.5 X 2.75mm)
0 lb (0.0 kg)
0128500M
Chrome
21
spacer
O-Ring (18,2 X 1,7mm)
0 lb (0.0 kg)
0392400M
Chrome
35
spacer
Cross Handles (Pair)
1 lb (0.3 kg)
18026EN3 *
Brushed Nickel
158
spacer
Lever Handles (Pair)
1 lb (0.3 kg)
18027EN3 *
Brushed Nickel
158
spacer
Ceramic Cartridge, Right
0 lb (0.1 kg)
45882000
Chrome
66
spacer
Ceramic Cartridge, Left
0 lb (0.1 kg)
45883000
Chrome
66
spacer
Plug
0 lb (0.1 kg)
45986000
Chrome
81
spacer
Watersaving Kit 1.0 GPM
0 lb (0.1 kg)
48186000
Chrome
61
spacer
Safety Ring
0 lb (0.0 kg)
4826600M
Chrome
13
spacer
Mounting Set
0 lb (0.1 kg)
48384000
Chrome
36
spacer
Flow Straightener Us
0 lb (0.0 kg)
48410000
No Finish
14
spacer
Pop-Up Waste Set (with overflow)
1 lb (0.6 kg)
65818000 *
Chrome
206


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: GROHE SPA
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Department of Energy Certified: Yes
Collections: Atrio® New
WaterSense: Yes
Faucet Type: Vessel
Fitting Connection Size Input: 9.52
Handle Type: Not Included
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 12-3/4
Spout Type: High Arc
Gallons Per Minute (min-max): 1.5
Input Connection Type: Compression
Kitchen or Bathroom: Bath
Height: 16-1/2
Width: 5-7/8
Residential or Commercial: Residential
Subcategory: Vessel Bathroom Faucets
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

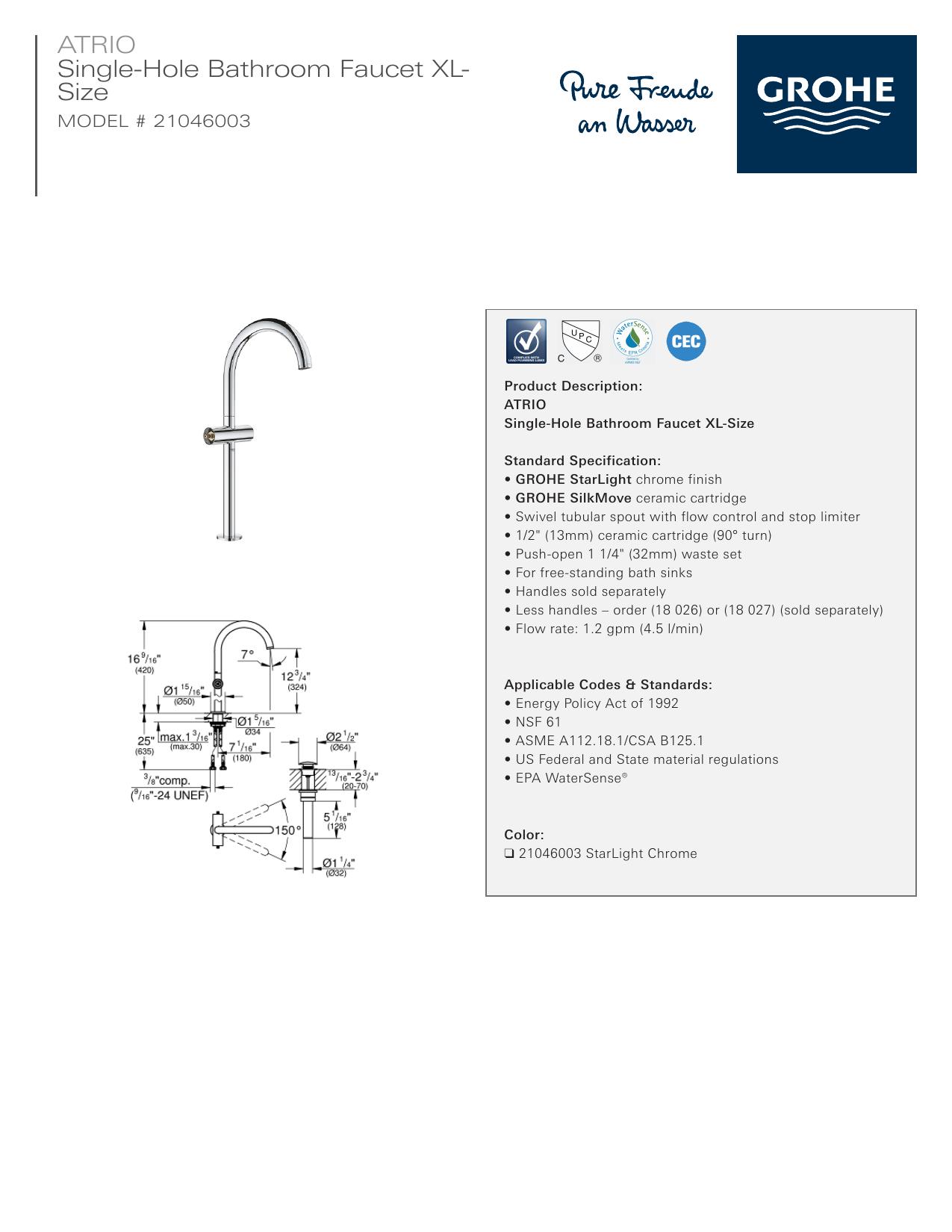

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
