Fitzgerald

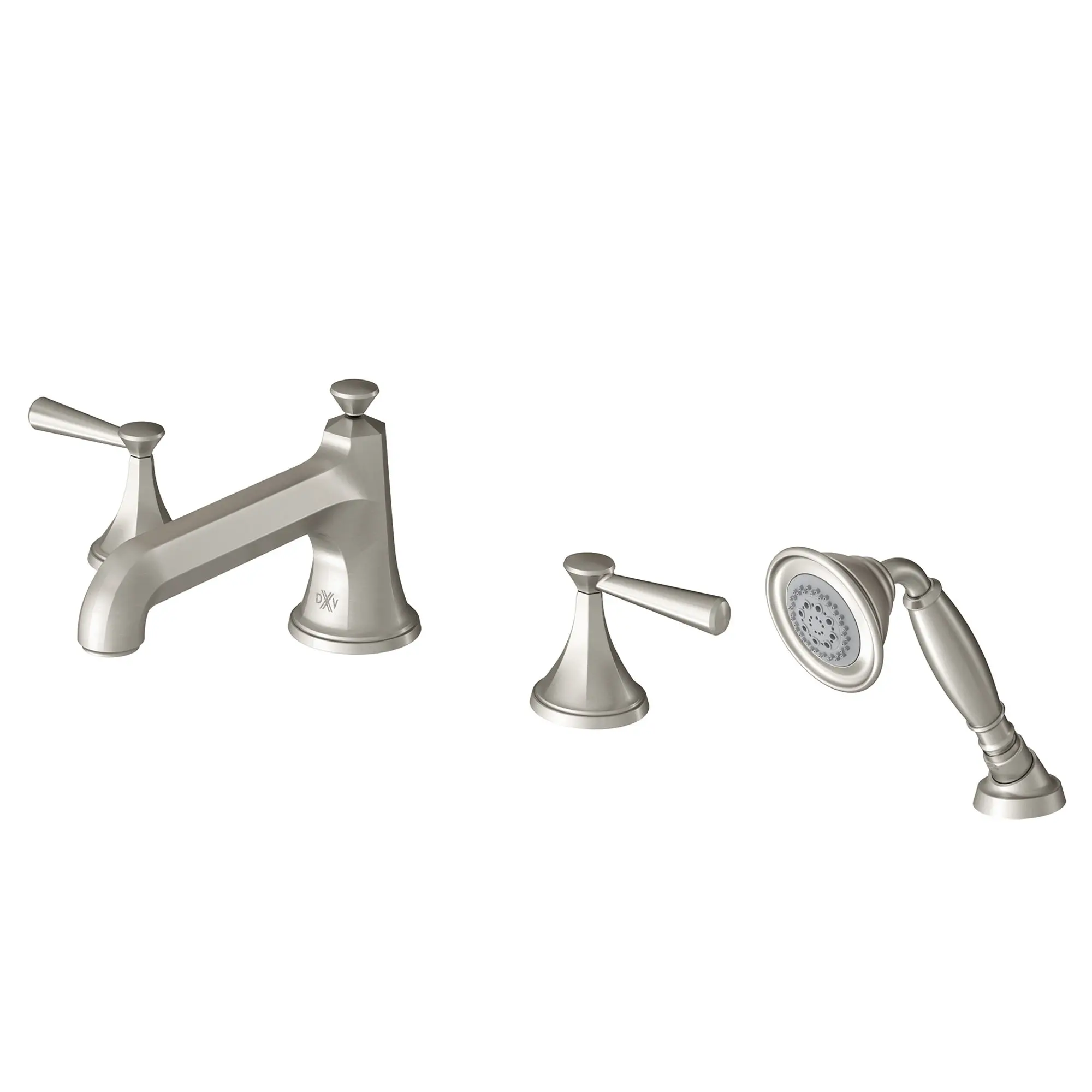

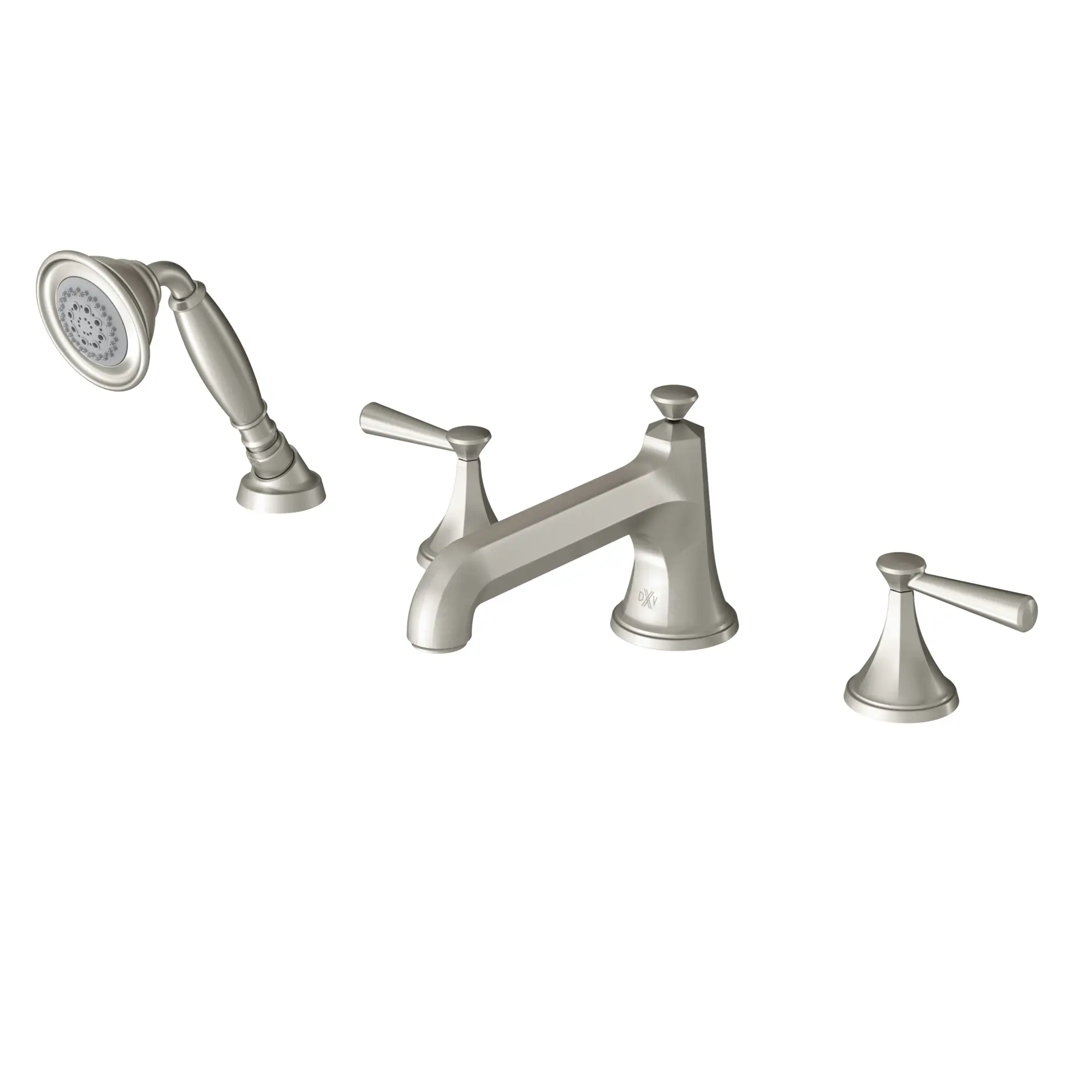

Fitzgerald 2-Handle Deck Mount Bathtub Faucet with Hand Shower and Lever Handles

The Fitzgerald Deck Mount Tub Filler with Hand Shower from DXV is a true classic, reflecting the exuberance and high-spirited style of the Jazz Age with its robust profile and faceted details. Designed to complement the entire Fitzgerald collection, this deck mount tub filler features a five-spray hand shower, ideal for rinsing off and cleaning the tub. Executed with the exacting precision you would expect from DXV, Fitzgerald makes a lasting impression in today’s most beautiful bathrooms.

Brushed Nickel D35160900.144 DISCONTINUED
List Price: $1,496.00
Cal Green CEC Certified Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • From the Fitzgerald Collection - Golden Era Movement
  • Lends character and elegance to the classic bathroom
  • Hand shower features five sprays including shower, massage and champagne, plus combination sprays shower/massage and shower/champagne
  • Durable cast brass spout and metal lever handles for smooth water control
  • Quality ceramic disc valves ensure drip-free reliability
  • Lead-free design contains =0.25% total lead content by weighted volume
  • Decorative 5-ft. (1.5 m) metal hose on hand shower
  • Maximum hand shower flow rate: 1.8 gpm (6.8 L/min)
  • Rough in D35000910.191 required for installation (sold separately)
Technical Features
  • Stylized, sophisticated design with precise and elegant lines
  • Cast brass spout and side valves
  • Flexible hose connections for 8" - 12" installations
  • Hand shower features 5 ft (1.5 m) metal hose
  • Maximum hand shower flow rate: 1.8 gpm (6.8 L/min)
  • Meets or Exceeds ASME A112.18.1/CSA B125.1
  • CEC and CALGreen® Compliant
  • Rough in D35000910.191 required for installation (sold separately)
Nominal Dimensions: 10-3/8 in x 24-1/8 in x 7-13/16 in (264 mm x 613 mm x 198 mm)
Description
Net Weight
SKU
Color
List Price USD
Fitzgerald 2-Handle Deck Mount Bathtub Faucet with Hand Shower and Lever Handles
8 lb (3.4 kg)
D35160900.144 *
Brushed Nickel (144)
1496
D35160900.100 *
Polished Chrome (100)
1301
D35160900.150 *
Platinum Nickel (150)
1496
Spare Parts
Deck Mount Tub Filler Rough Valve
5 lb (2.4 kg)
D35000910.191
Unfinsihed
359
spacer
Lift Knob
11 lb (5.2 kg)
M909864-1440A
Brushed Nickel
21
spacer
Transfer Rod Assembly
0 lb (0.0 kg)
M950809-0070A *
No Finish
0
spacer
Handle Kit
1 lb (0.4 kg)
M970536-1440A
Brushed Nickel
122
spacer
BUTTON & SET SCREW KIT
0 lb (0.1 kg)
M970537-1440A
Brushed Nickel
13
spacer
DECK ADAPTER KIT
0 lb (0.1 kg)
M970538-0070A
No Finish
38
spacer
TRANSFER ASSEMBLY
0 lb (0.2 kg)
M970575-1440A
Brushed Nickel
156


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: DXV
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Department of Energy Certified: Yes
Collections: Fitzgerald
WaterSense: Yes
Faucet Type: Tub Filler
Fitting Material: Brass
Mount Type: Deck Mount
Spout Height: 2-3/16
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.8 GPM
Height: 7-13/16
Length: 10-3/8
Width: 24-1/8
Residential or Commercial: Residential
Subcategory: Tub Filler Bathroom Faucets
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Warranty
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
